Description
Foxglove 40 mm Wooden Bunkie Kit – 9.8 m²
Rather than relying on a generic square box, Foxglove 40 mm Wooden Bunkie Kit – 9.8 m² uses its wide, shallow footprint and a multi-opening façade that supports flexible access and daylight to create a more purposeful layout for a quiet studio, hobby room or overflow sleeping space.

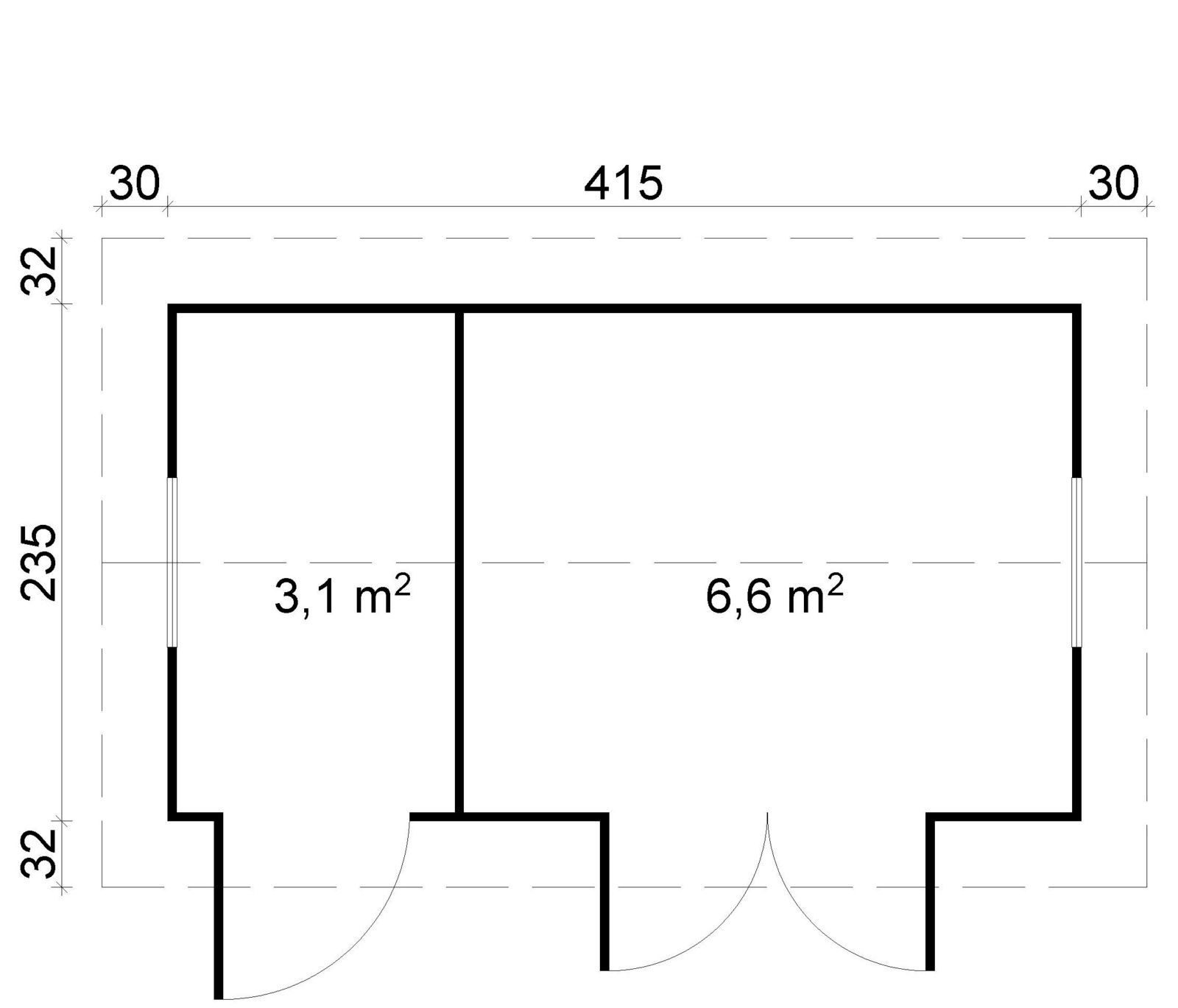

The listed 9.8 m² (105 sq. ft.) main area is arranged within a 415 × 235 cm exterior footprint.
What makes this model different
- 9.8 m² (approximately 105 sq. ft.) arranged within external dimensions of 415 × 235 cm
- 40 mm wall boards for a more substantial three-season shell
- Pronounced gable roof with 251 cm ridge height, compact 30 cm eaves
- Opening configuration: 1 wide access opening, 1 person-width entrance, 1 listed window
Where this model fits best
The broad frontage is useful for a workbench wall, display/storage cabinets or a room arranged across the width rather than deep into the building.
Footprint and architectural character

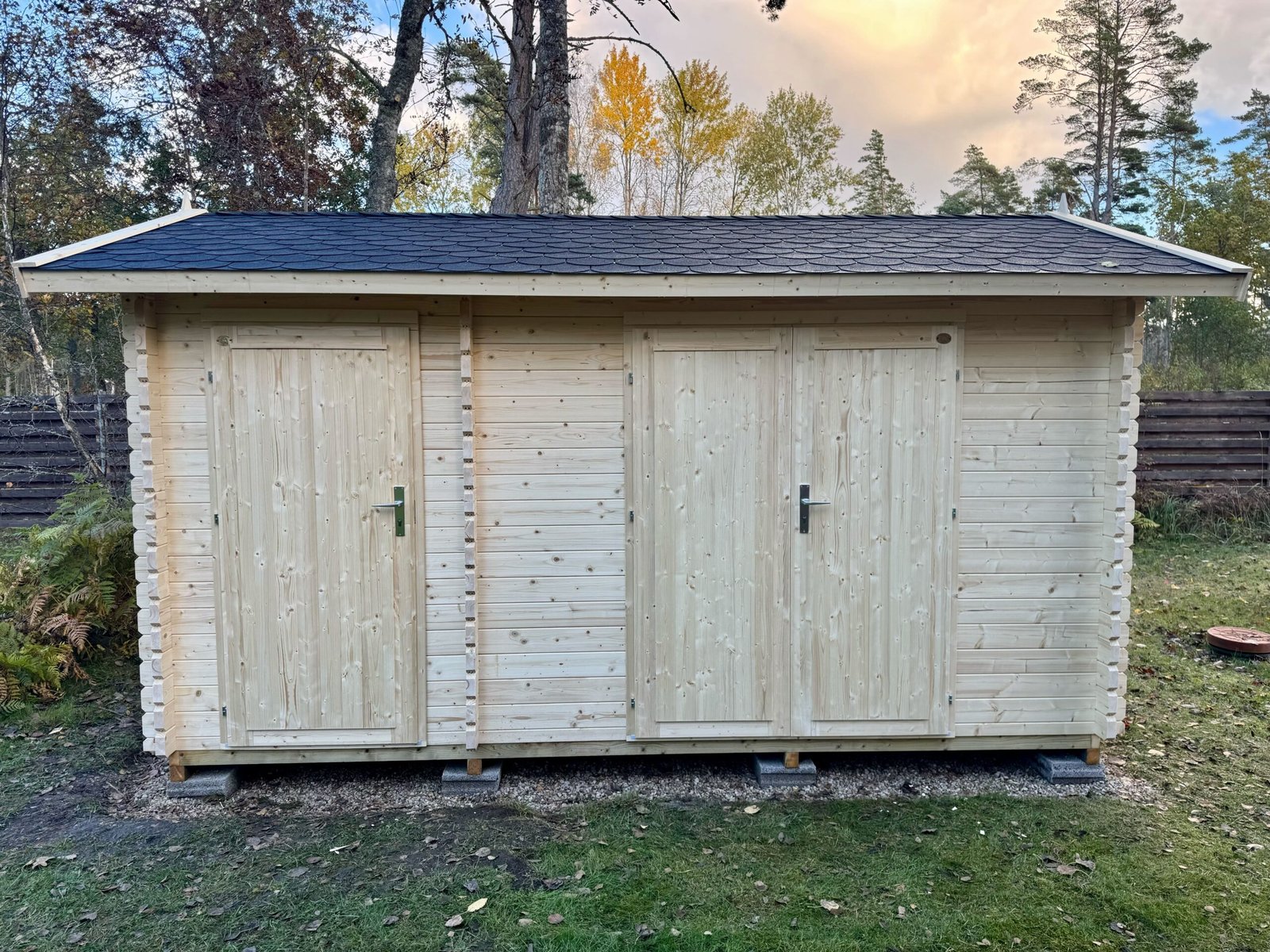

The opening layout combines a wide access opening measuring 1425 × 1835 mm, a person-width entrance measuring 840 × 1835 mm, and a window measuring 765 × 990 mm. The exterior is shaped by a wide, shallow footprint and a pronounced gable roof, complemented by 251 cm ridge height, compact 30 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+28 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 435 × 255 cm |
|---|---|
| External wall dimensions | 415 × 235 cm |
| Wall thickness | 40 mm |
| Side-wall height | 211 cm |
| Ridge height | 251 cm |
| Floor area | 9.8 m² |
| Approximate floor area | 105 sq. ft. |
| Roof area | 14.9 m² |
| Building volume | 21.4 m³ |
| Roof pitch | 19° |
| Roof overhang | 30 cm |
| Floor / roof board thickness | 18+28 mm |
| Door / glazed opening specification 1 | 1425 × 1835 mm |
| Door / glazed opening specification 2 | 840 × 1835 mm |
| Door / glazed opening specification 3 | 765 × 990 mm |
| Package dimensions | 480 × 108 × 65 cm |
| Package weight | 960 kg |
| Number of packages | 6 |
| Product code | 1a22-0a42-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
