Description
Juniper 40 mm Wooden Bunkie Kit – 7.3 m²
With a broad access opening that is useful for furniture, tools and equipment as its defining characteristic, Juniper 40 mm Wooden Bunkie Kit – 7.3 m² is a strong candidate for a quiet studio, hobby room or overflow sleeping space on Canadian residential or cottage properties.
The listed 7.3 m² (79 sq. ft.) main area is arranged within a 280 × 280 cm exterior footprint.
Design details worth comparing
- 7.3 m² (approximately 79 sq. ft.) arranged within external dimensions of 280 × 280 cm
- 40 mm wall boards for a more substantial three-season shell
- Pronounced gable roof with 283 cm ridge height, compact 20 cm eaves
- Opening configuration: 1 wide access opening, 1 tall narrow glazed opening
Where this model fits best
A perimeter-based layout keeps the centre open: place storage and work surfaces against the walls and retain clear movement between the entrance and window.
Footprint and architectural character

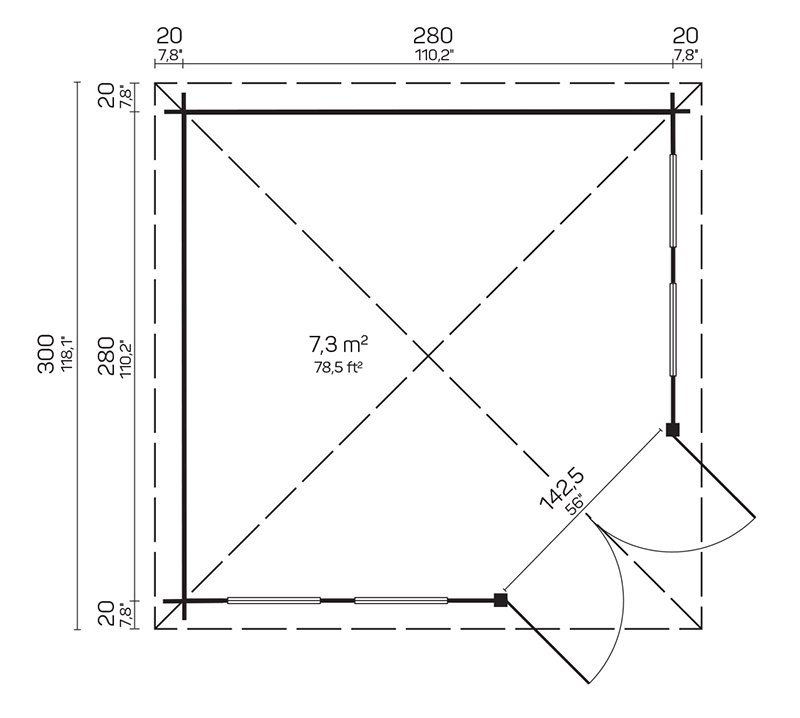

The opening layout combines a wide access opening measuring 1425 × 1900 mm with a tall narrow glazed opening measuring 515 × 1890 mm. The exterior is shaped by a balanced square footprint and a pronounced gable roof, complemented by 283 cm ridge height, compact 20 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 300 × 300 cm |
|---|---|
| External wall dimensions | 280 × 280 cm |
| Wall thickness | 40 mm |
| Side-wall height | 221 cm |
| Ridge height | 283 cm |
| Floor area | 7.3 m² |
| Approximate floor area | 79 sq. ft. |
| Roof area | 11.2 m² |
| Building volume | 17.1 m³ |
| Roof pitch | 22° |
| Roof overhang | 20 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1900 mm |
| Door / glazed opening specification 2 | 515 × 1890 mm |
| Package dimensions | 330 × 108 × 69 cm |
| Package weight | 820 kg |
| Number of packages | 7 |
| Product code | 1a22-1a40-23 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
