Maplehaven 28 mm Wooden Bunkie Kit – 9.9 m²
Designed around a balanced square footprint, Maplehaven 28 mm Wooden Bunkie Kit – 9.9 m² balances usable interior space with a broad access opening that is useful for furniture, tools and equipment. It is well suited to a flexible bunkie for cottage guests, remote work or organised storage.

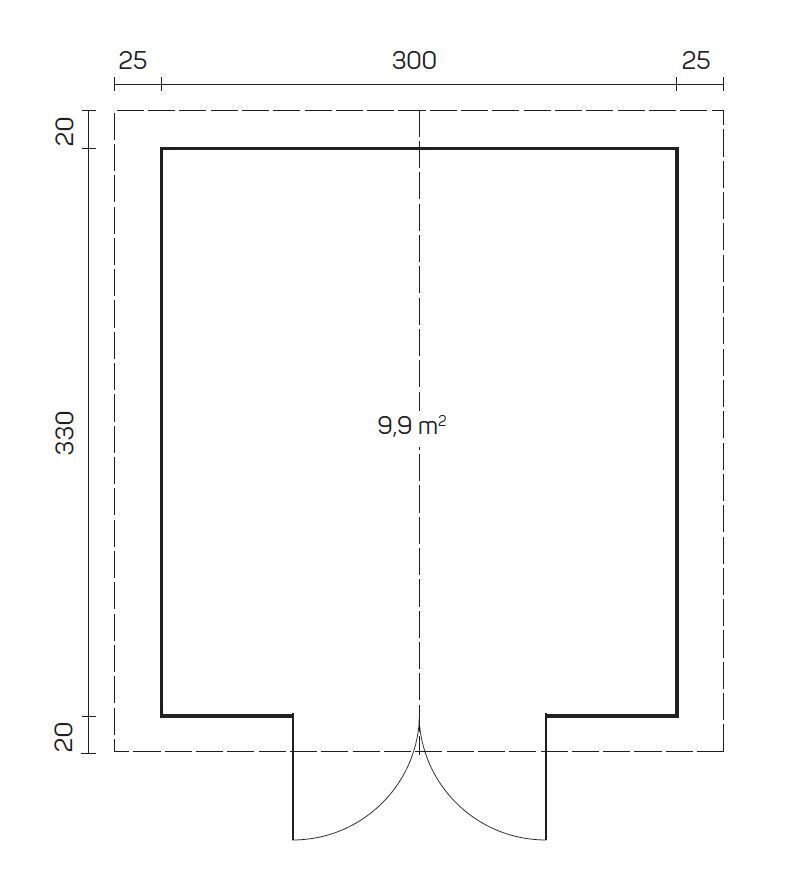

The listed 9.9 m² (107 sq. ft.) main area is arranged within a 300 × 330 cm exterior footprint.
Why this layout stands out
- 9.9 m² (approximately 107 sq. ft.) arranged within external dimensions of 300 × 330 cm
- 28 mm wall boards for a lighter seasonal-use structure
- Restrained gable roof with 234 cm ridge height, compact 20 cm eaves
- Opening configuration: 1 wide access opening, 1 listed window
Practical ways to use the space
A perimeter-based layout keeps the centre open: place storage and work surfaces against the walls and retain clear movement between the entrance and window.
Door, window and roof configuration
The opening layout combines a wide access opening measuring 1425 × 1835 mm with a window measuring 765 × 990 mm. The exterior is shaped by a balanced square footprint and a restrained gable roof, complemented by 234 cm ridge height, compact 20 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 320 × 350 cm |
|---|---|
| External wall dimensions | 300 × 330 cm |
| Wall thickness | 28 mm |
| Side-wall height | 194 cm |
| Ridge height | 234 cm |
| Floor area | 9.9 m² |
| Approximate floor area | 107 sq. ft. |
| Roof area | 13.5 m² |
| Building volume | 20.1 m³ |
| Roof pitch | 15° |
| Roof overhang | 20 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1835 mm |
| Door / glazed opening specification 2 | 765 × 990 mm |
| Package dimensions | 370 × 108 × 50 cm |
| Package weight | 620 kg |
| Number of packages | 6 |
| Product code | 1a22-0a03-9 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
