Brookside 40 mm Wooden Bunkie Kit – 14.9 m²
For Canadian properties where a backyard office, seasonal guest room or compact cottage annex is the priority, Brookside 40 mm Wooden Bunkie Kit – 14.9 m² offers a distinctive combination of a multi-opening façade that supports flexible access and daylight and 40 mm wall boards for a more substantial three-season shell.

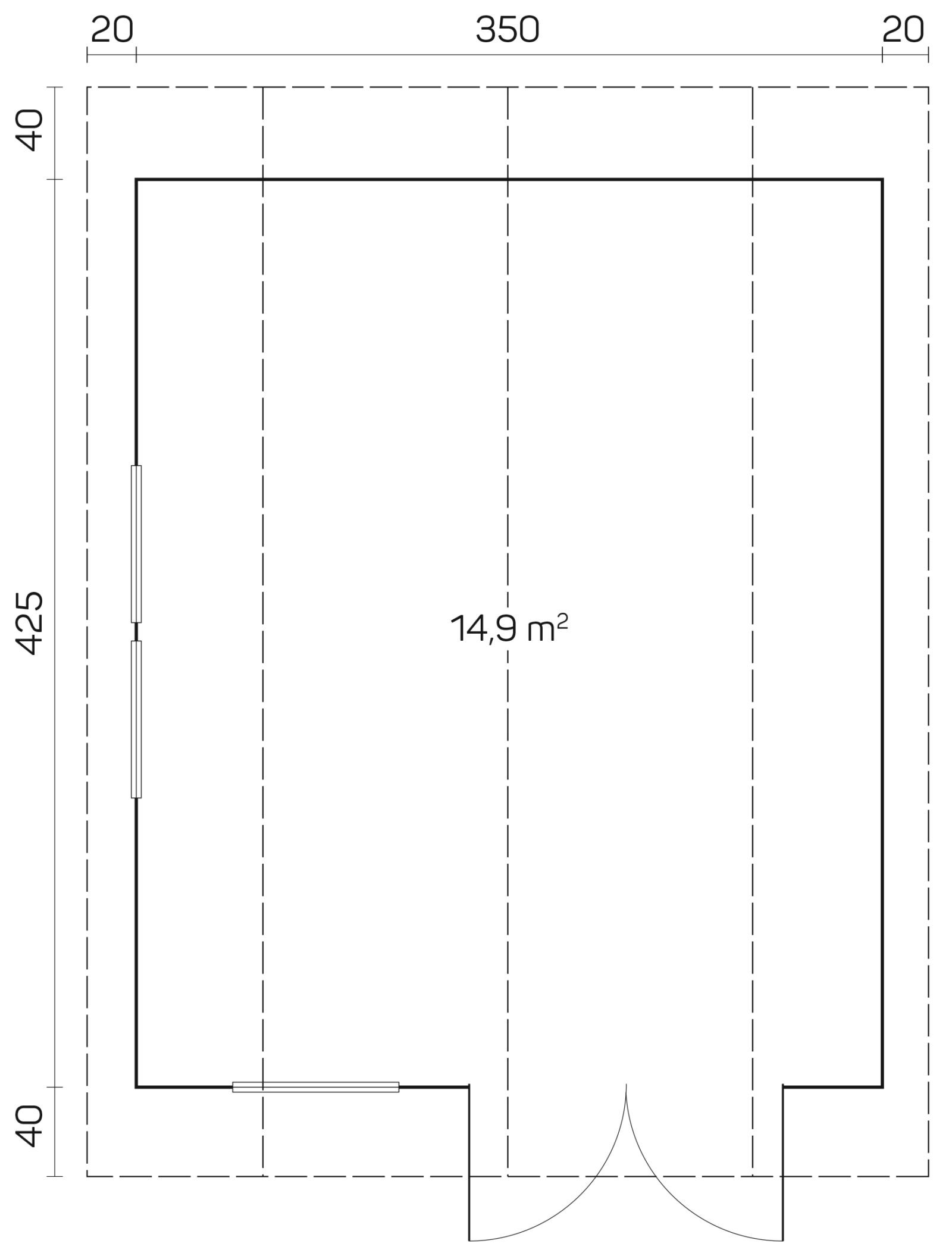

The listed 14.9 m² (160 sq. ft.) main area is arranged within a 350 × 425 cm exterior footprint.
Design details worth comparing
- 14.9 m² (approximately 160 sq. ft.) arranged within external dimensions of 350 × 425 cm
- 40 mm wall boards for a more substantial three-season shell
- Mixed roof geometry (40/17°) with 302 cm ridge height, compact 40 cm eaves
- Opening configuration: 1 wide access opening, 2 listed windows
Suggested Canadian uses
The room is large enough to separate a desk, seating or sleeping zone from storage using furniture rather than permanent partitions.
Access, daylight and roof profile
The opening layout combines a wide access opening measuring 1425 × 1955 mm, a window measuring 1530 × 990 mm, and a window measuring 765 × 990 mm. The exterior is shaped by a moderately rectangular footprint and a mixed roof geometry (40/17°), complemented by 302 cm ridge height, compact 40 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 370 × 445 cm |
|---|---|
| External wall dimensions | 350 × 425 cm |
| Wall thickness | 40 mm |
| Side-wall height | 217 cm |
| Ridge height | 302 cm |
| Floor area | 14.9 m² |
| Approximate floor area | 160 sq. ft. |
| Roof area | 23.3 m² |
| Building volume | 39 m³ |
| Roof pitch | 40/17° |
| Roof overhang | 40 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1955 mm |
| Door / glazed opening specification 2 | 1530 × 990 mm |
| Door / glazed opening specification 3 | 765 × 990 mm |
| Package dimensions | 505 × 108 × 57 cm |
| Package weight | 1057 kg |
| Number of packages | 9 |
| Product code | 1a22-1a07-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
