Description
Oakridge 40 mm Wooden Bunkie Kit – 13.5 m²
A closer look at Oakridge 40 mm Wooden Bunkie Kit – 13.5 m² shows why it differs from similar kits: a broad access opening that is useful for furniture, tools and equipment, supported by 40 mm wall boards for a more substantial three-season shell.

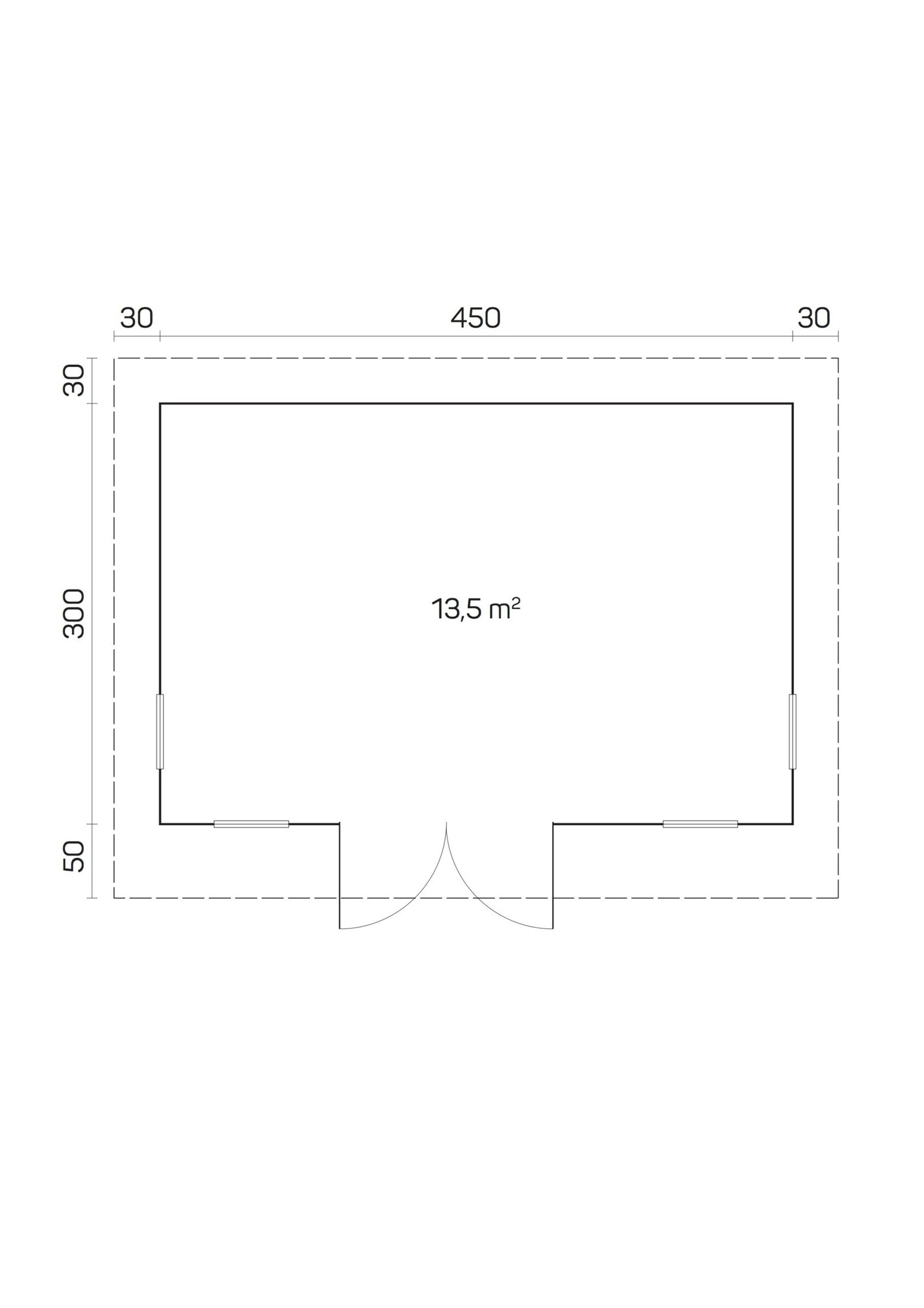

The listed 13.5 m² (145 sq. ft.) main area is arranged within a 450 × 300 cm exterior footprint.
Design details worth comparing
- 13.5 m² (approximately 145 sq. ft.) arranged within external dimensions of 450 × 300 cm
- 40 mm wall boards for a more substantial three-season shell
- Very low-slope contemporary roof with 251 cm ridge height, generous 50 cm eaves
- Opening configuration: 1 wide access opening, 1 tall narrow glazed opening
Best suited to
The room is large enough to separate a desk, seating or sleeping zone from storage using furniture rather than permanent partitions.
How the building is arranged
The opening layout combines a wide access opening measuring 1425 × 1955 mm with a tall narrow glazed opening measuring 515 × 1890 mm. The exterior is shaped by a elongated rectangular footprint and a very low-slope contemporary roof, complemented by 251 cm ridge height, generous 50 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 470 × 320 cm |
|---|---|
| External wall dimensions | 450 × 300 cm |
| Wall thickness | 40 mm |
| Side-wall height | 233 cm |
| Ridge height | 251 cm |
| Floor area | 13.5 m² |
| Approximate floor area | 145 sq. ft. |
| Roof area | 19.6 m² |
| Building volume | 28.5 m³ |
| Roof pitch | 4.5° |
| Roof overhang | 50 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1955 mm |
| Door / glazed opening specification 2 | 515 × 1890 mm |
| Package dimensions | 520 × 108 × 70 cm |
| Package weight | 1200 kg |
| Number of packages | 7 |
| Product code | 1a22-0a64-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
