Description

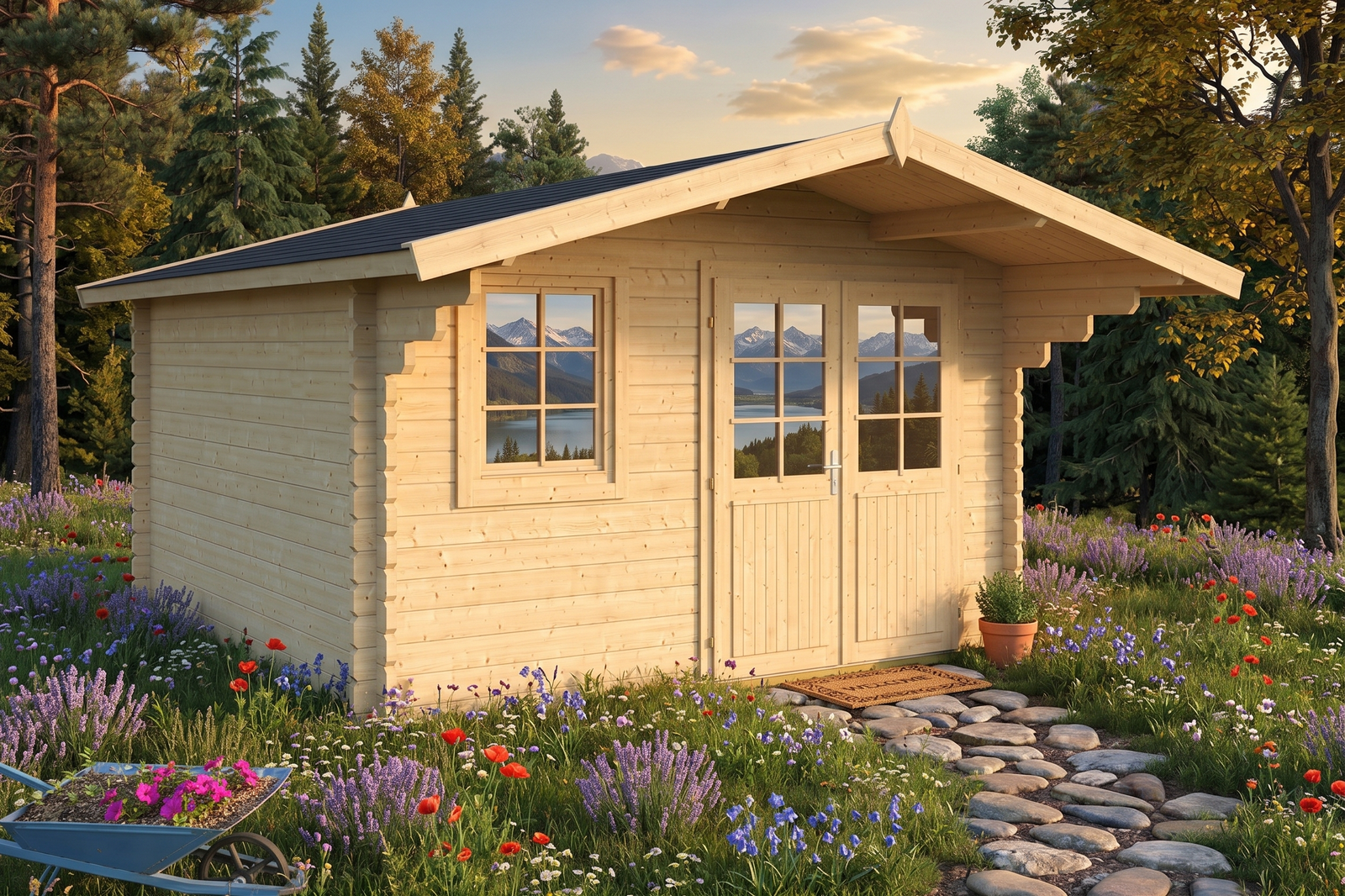

Lakehouse 40 mm Wooden Bunkie Kit – 13 m²
With a deep 125 cm roof projection that creates a sheltered threshold as its defining characteristic, Lakehouse 40 mm Wooden Bunkie Kit – 13 m² is a strong candidate for a flexible bunkie for cottage guests, remote work or organised storage on Canadian residential or cottage properties.
The listed 13 m² (140 sq. ft.) main area is arranged within a 360 × 360 cm exterior footprint.
Design details worth comparing
- 13 m² (approximately 140 sq. ft.) arranged within external dimensions of 360 × 360 cm
- 40 mm wall boards for a more substantial three-season shell
- Restrained gable roof with 257 cm ridge height, deep 125 cm roof projection
- Opening configuration: 1 wide access opening, 1 listed window
Practical ways to use the space
The room is large enough to separate a desk, seating or sleeping zone from storage using furniture rather than permanent partitions.
Door, window and roof configuration

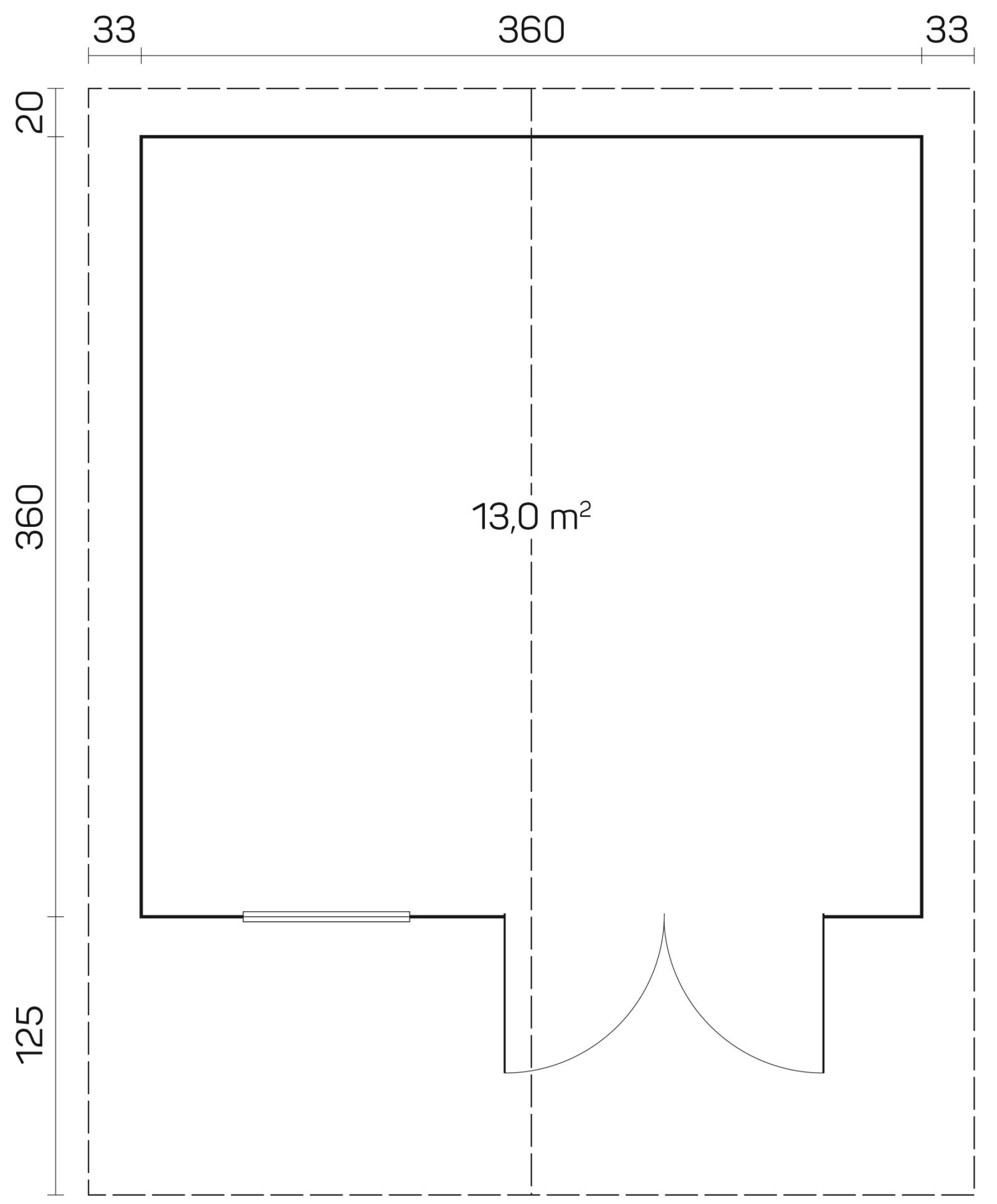

The opening layout combines a wide access opening measuring 1425 × 1955 mm with a window measuring 765 × 990 mm. The exterior is shaped by a balanced square footprint and a restrained gable roof, complemented by 257 cm ridge height, deep 125 cm roof projection.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 380 × 380 cm |
|---|---|
| External wall dimensions | 360 × 360 cm |
| Wall thickness | 40 mm |
| Side-wall height | 205 cm |
| Ridge height | 257 cm |
| Floor area | 13 m² |
| Approximate floor area | 140 sq. ft. |
| Roof area | 22.4 m² |
| Building volume | 28.6 m³ |
| Roof pitch | 16° |
| Roof overhang | 125 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1955 mm |
| Door / glazed opening specification 2 | 765 × 990 mm |
| Package dimensions | 510 × 108 × 65 cm |
| Package weight | 1328 kg |
| Number of packages | 9 |
| Product code | 1a22046-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
