Westhaven 40 mm Wooden Bunkie Kit – 14.4 m²
Westhaven 40 mm Wooden Bunkie Kit – 14.4 m² focuses on practical proportions. Its a deep 150 cm roof projection that creates a sheltered threshold works with a balanced square footprint to support a flexible bunkie for cottage guests, remote work or organised storage.

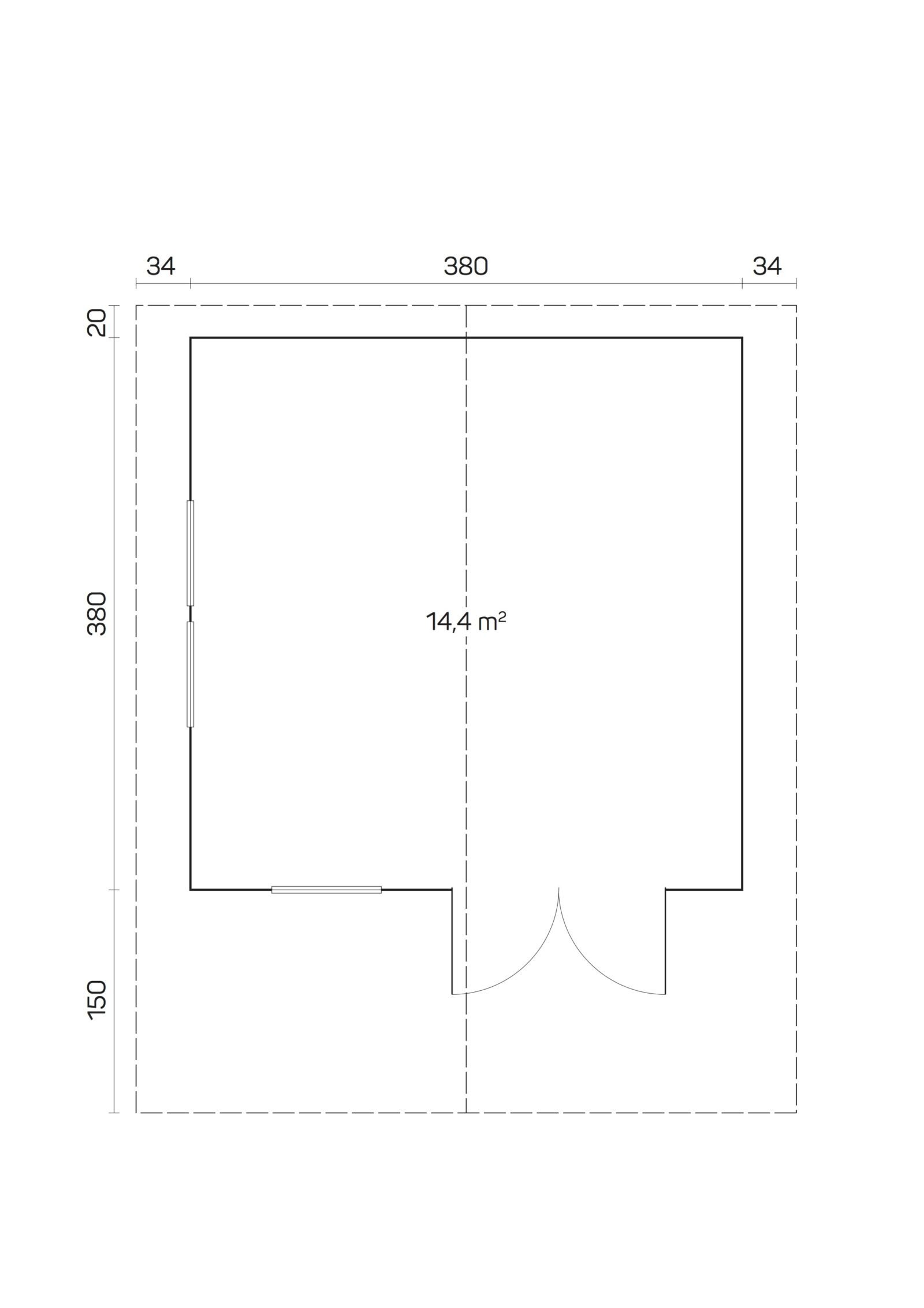

The listed 14.4 m² (155 sq. ft.) main area is arranged within a 380 × 380 cm exterior footprint.
Product-specific highlights
- 14.4 m² (approximately 155 sq. ft.) arranged within external dimensions of 380 × 380 cm
- 40 mm wall boards for a more substantial three-season shell
- Restrained gable roof with 257 cm ridge height, deep 150 cm roof projection
- Opening configuration: 1 wide access opening, 2 listed windows
Practical ways to use the space
The room is large enough to separate a desk, seating or sleeping zone from storage using furniture rather than permanent partitions.
Door, window and roof configuration
The opening layout combines a wide access opening measuring 1425 × 1955 mm, a window measuring 765 × 990 mm, and a window measuring 1530 × 990 mm. The exterior is shaped by a balanced square footprint and a restrained gable roof, complemented by 257 cm ridge height, deep 150 cm roof projection.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 400 × 400 cm |
|---|---|
| External wall dimensions | 380 × 380 cm |
| Wall thickness | 40 mm |
| Side-wall height | 205 cm |
| Ridge height | 257 cm |
| Floor area | 14.4 m² |
| Approximate floor area | 155 sq. ft. |
| Roof area | 25.3 m² |
| Building volume | 32.8 m³ |
| Roof pitch | 15° |
| Roof overhang | 150 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1955 mm |
| Door / glazed opening specification 2 | 765 × 990 mm |
| Door / glazed opening specification 3 | 1530 × 990 mm |
| Package dimensions | 550 × 108 × 64 cm |
| Package weight | 1432 kg |
| Number of packages | 10 |
| Product code | 1a22-0a88-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
