Oakshade 40 mm Wooden Gazebo Kit – 14.4 m²
Designed around a balanced square footprint, Oakshade 40 mm Wooden Gazebo Kit – 14.4 m² balances usable interior space with its balanced square footprint and 14.4 m² layout. It is well suited to an outdoor lounge, garden dining room or weather-protected gathering space.

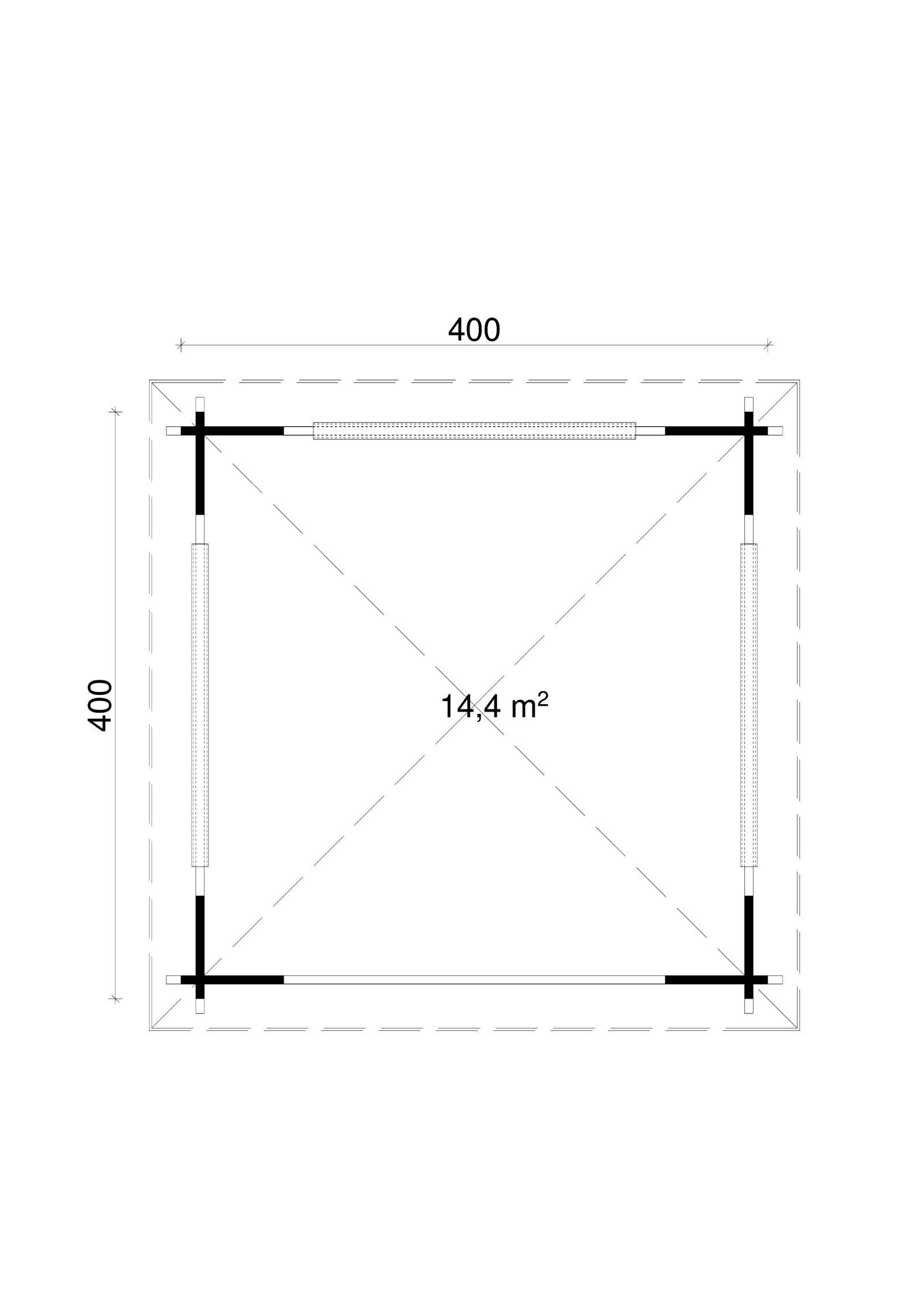

The listed 14.4 m² (155 sq. ft.) main area is arranged within a 380 × 380 cm exterior footprint.
Product-specific highlights
- 14.4 m² (approximately 155 sq. ft.) arranged within external dimensions of 380 × 380 cm
- 40 mm wall boards for a more substantial three-season shell
- Pronounced gable roof with 288 cm ridge height, compact 30 cm eaves
Planning the interior
Allow circulation around the seating or dining area and plan the finished floor, drainage and roof covering as part of the site design.
Exterior proportions and access
The opening arrangement is not fully detailed in the available technical record and should be confirmed before ordering. The exterior is shaped by a balanced square footprint and a pronounced gable roof, complemented by 288 cm ridge height, compact 30 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Profiled floor and/or roof boards in the listed 18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 400 × 400 cm |
|---|---|
| External wall dimensions | 380 × 380 cm |
| Wall thickness | 40 mm |
| Side-wall height | 228 cm |
| Ridge height | 288 cm |
| Floor area | 14.4 m² |
| Approximate floor area | 155 sq. ft. |
| Roof area | 26 m² |
| Roof pitch | 22° |
| Roof overhang | 30 cm |
| Floor / roof board thickness | 18 mm |
| Package dimensions | 444 × 108 × 45 csemioonm cm |
| Package weight | 770 kg |
| Number of packages | 10 |
| Product code | 1a22-4a05 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
