Description
Arbor Grove Wooden Pergola Kit – 7.8 m²

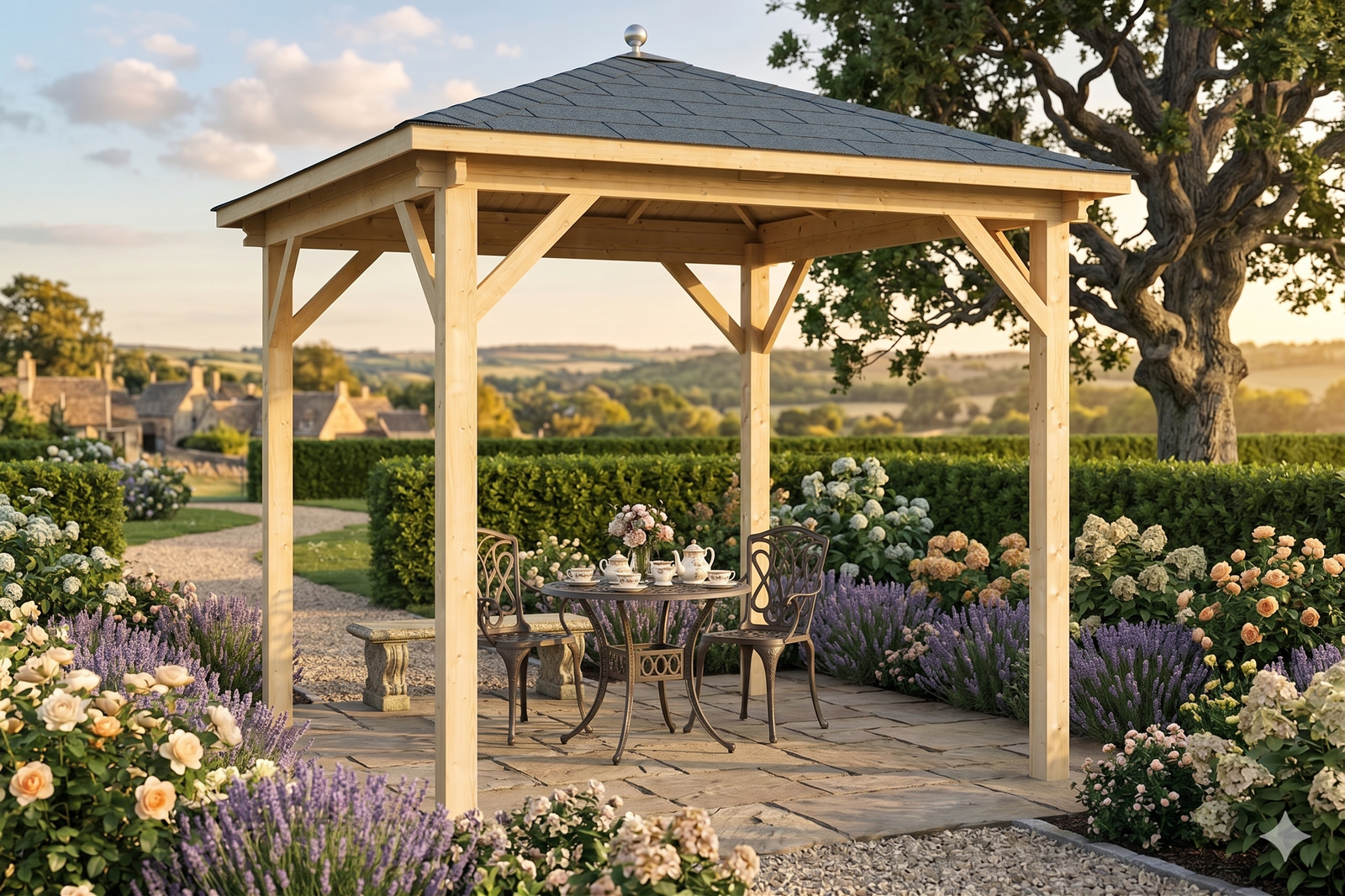

With its balanced square footprint and 7.8 m² layout as its defining characteristic, Arbor Grove Wooden Pergola Kit – 7.8 m² is a strong candidate for an open-air dining area, garden lounge or architectural landscape feature on Canadian residential or cottage properties.

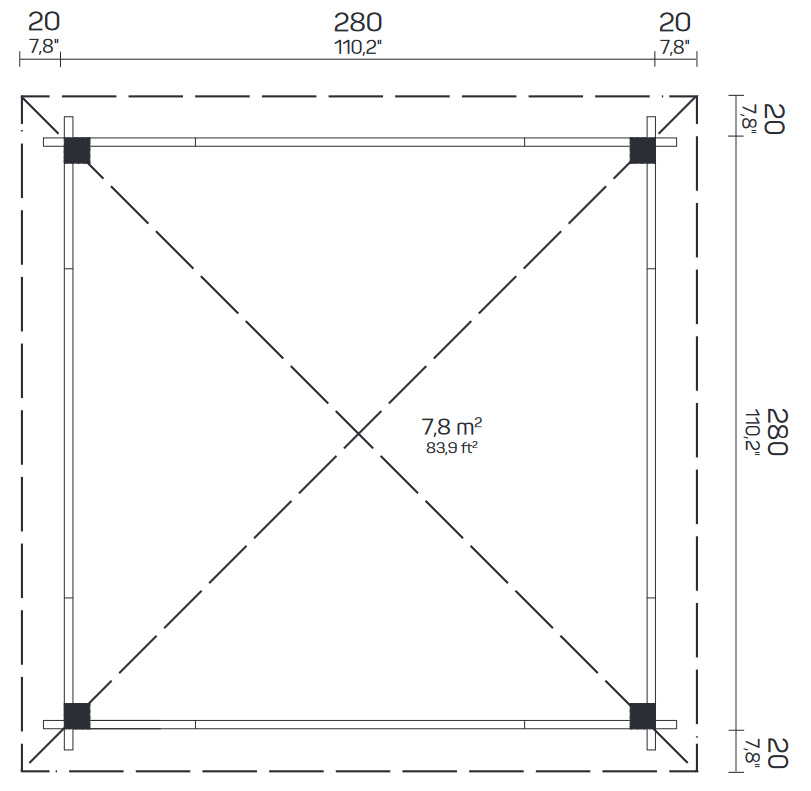

The listed 7.8 m² (84 sq. ft.) main area is arranged within a 280 × 280 cm exterior footprint.
Key advantages of this configuration
- 7.8 m² (approximately 84 sq. ft.) arranged within external dimensions of 280 × 280 cm
- 40 mm wall boards for a more substantial three-season shell
- Pronounced gable roof with 329 cm ridge height, compact 20 cm eaves
Planning the interior
Allow circulation around the seating or dining area and plan the finished floor, drainage and roof covering as part of the site design.
Exterior proportions and access
The opening arrangement is not fully detailed in the available technical record and should be confirmed before ordering. The exterior is shaped by a balanced square footprint and a pronounced gable roof, complemented by 329 cm ridge height, compact 20 cm eaves.
What is included

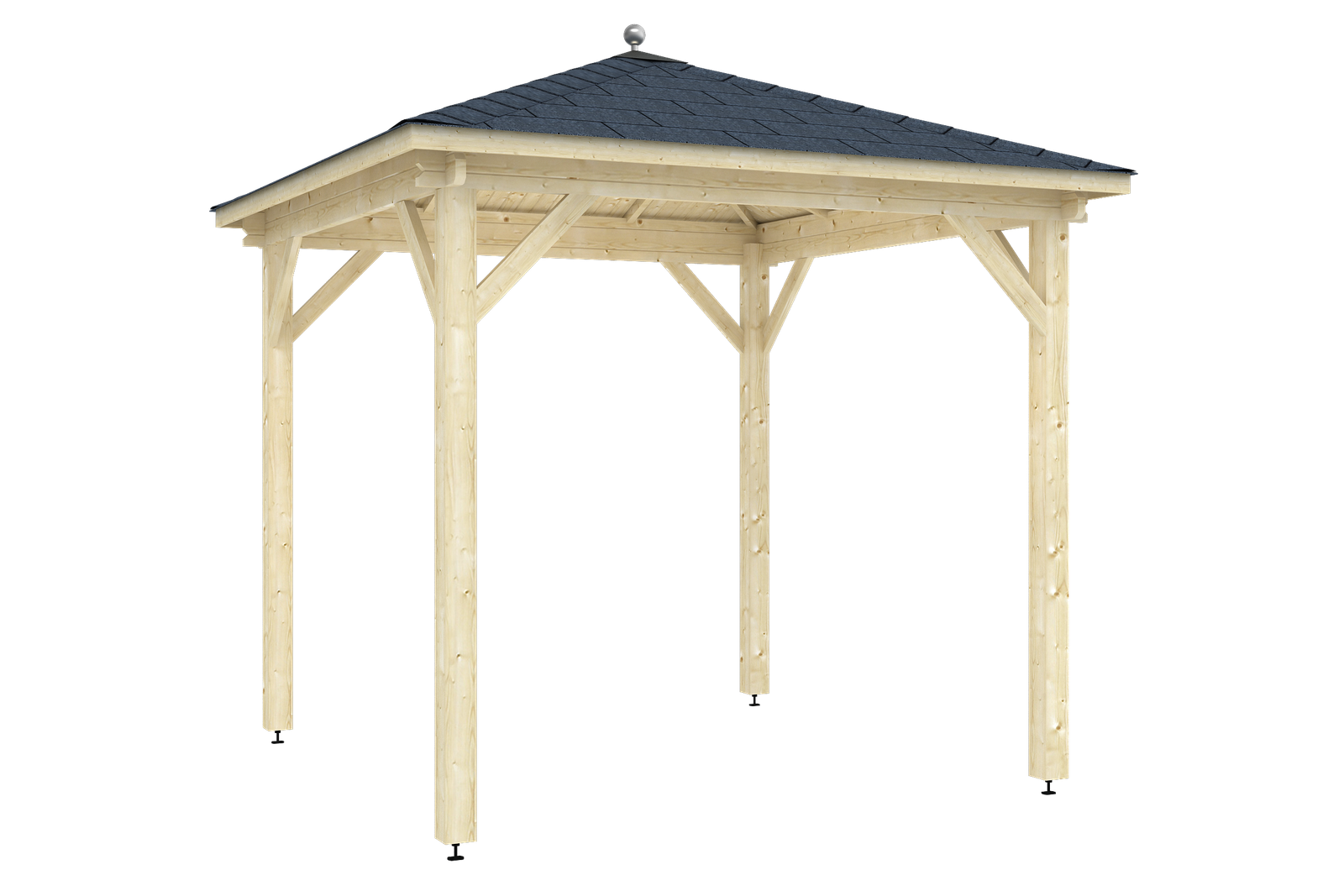

- Prefabricated timber posts, beams and connecting components
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 300 × 300 cm |
|---|---|
| External wall dimensions | 280 × 280 cm |
| Wall thickness | 40 mm |
| Side-wall height | 267 cm |
| Ridge height | 329 cm |
| Floor area | 7.8 m² |
| Approximate floor area | 84 sq. ft. |
| Roof area | 16.1 m² |
| Roof pitch | 22° |
| Roof overhang | 20 cm |
| Floor / roof board thickness | 18 mm |
| Package dimensions | 325 × 108 × 29 cm |
| Package weight | 300 kg |
| Number of packages | 7 |
| Product code | 1a22-3a95 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
