Highpoint 40 mm Wooden Bunkie Kit – 9.7 m²
A closer look at Highpoint 40 mm Wooden Bunkie Kit – 9.7 m² shows why it differs from similar kits: A sleeping loft adds useful upper-level space while keeping the main footprint compact, supported by 40 mm wall boards for a more substantial three-season shell.

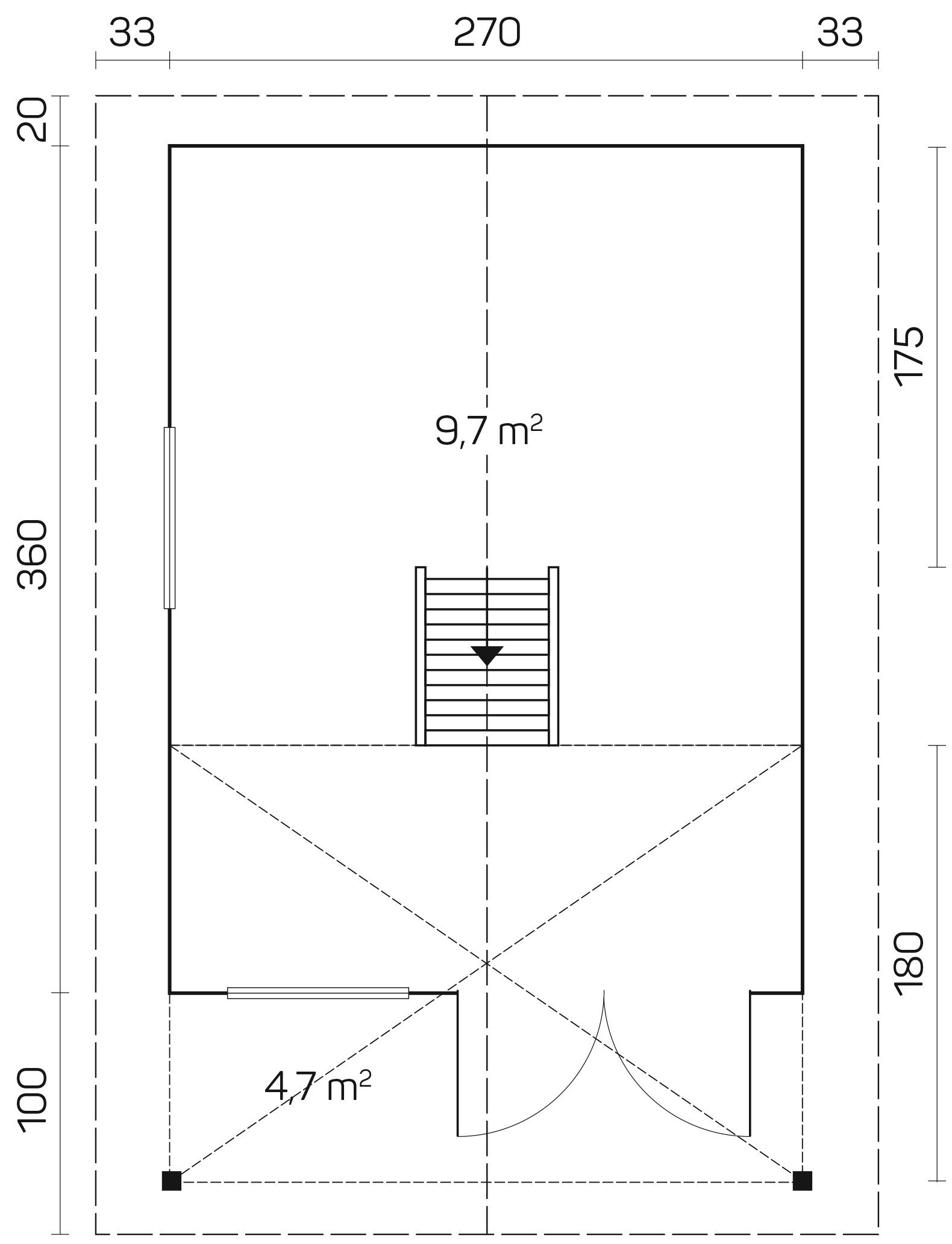

The listed 9.7 m² (104 sq. ft.) main area is arranged within a 270 × 360 cm exterior footprint.
Distinctive design features
- 9.7 m² (approximately 104 sq. ft.) arranged within external dimensions of 270 × 360 cm

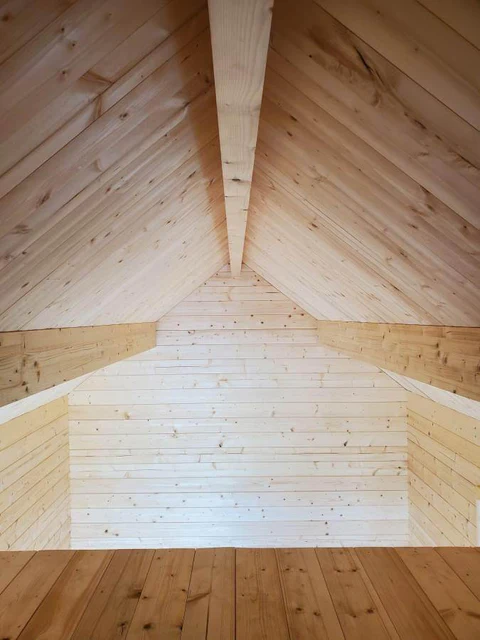

- 4.7 m² sleeping-loft area in addition to the main level
- 40 mm wall boards for a more substantial three-season shell

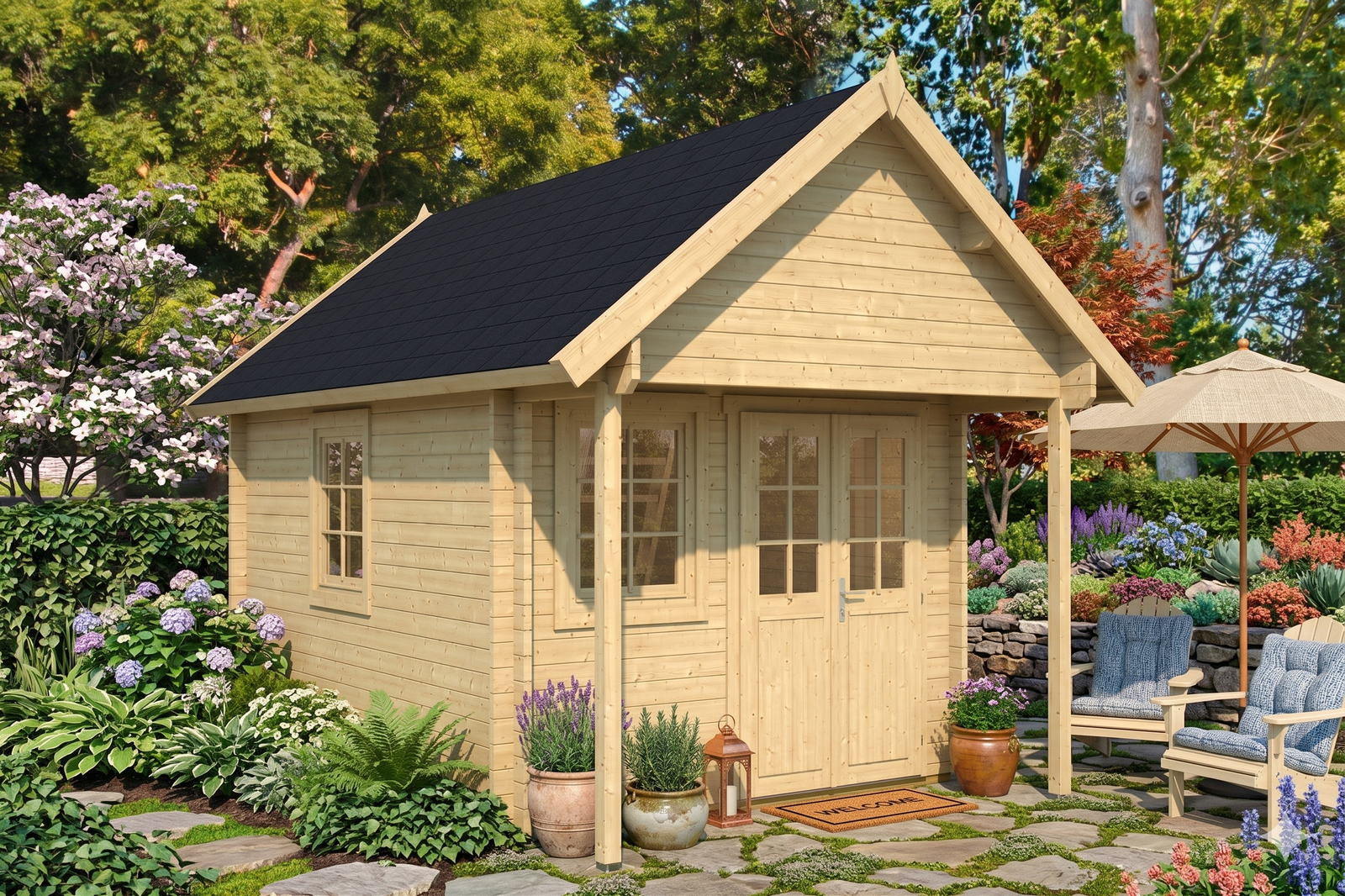

- Steep cottage-style roof with high 337 cm ridge, deep 100 cm roof projection
- Opening configuration: 1 wide access opening, 2 listed windows
- A sleeping loft adds useful upper-level space while keeping the main footprint compact.
Best suited to

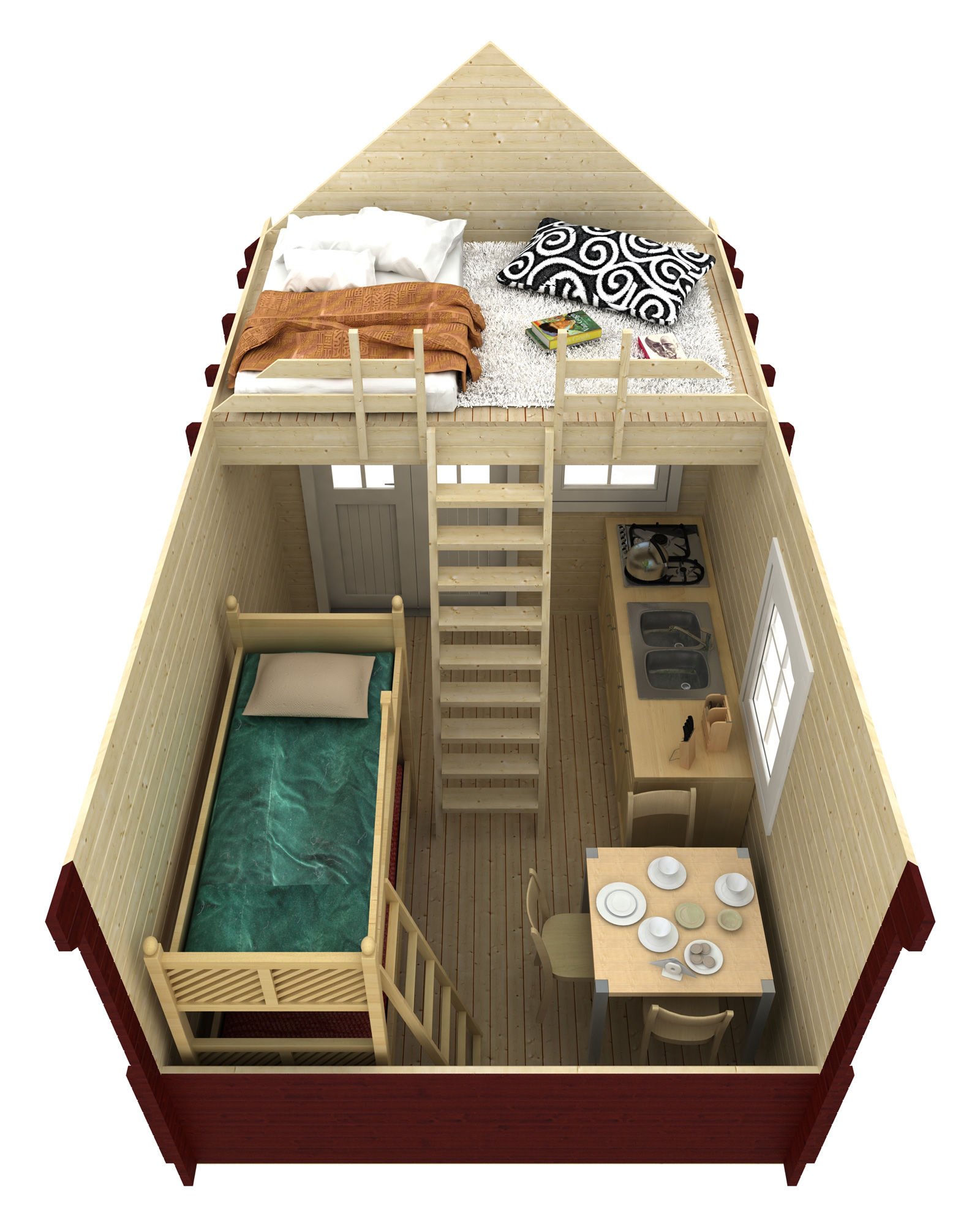

Use the main level for seating, work or storage and reserve the upper platform for sleeping or light seasonal storage. Final stair or ladder design and guard requirements must be planned locally.
How the building is arranged

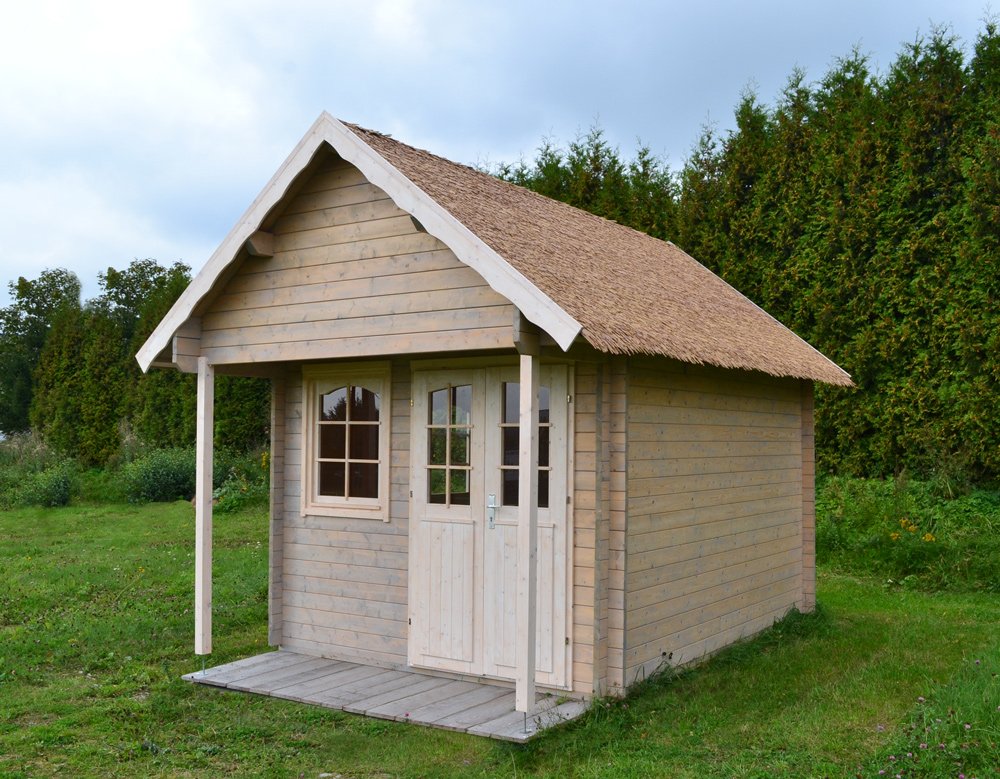

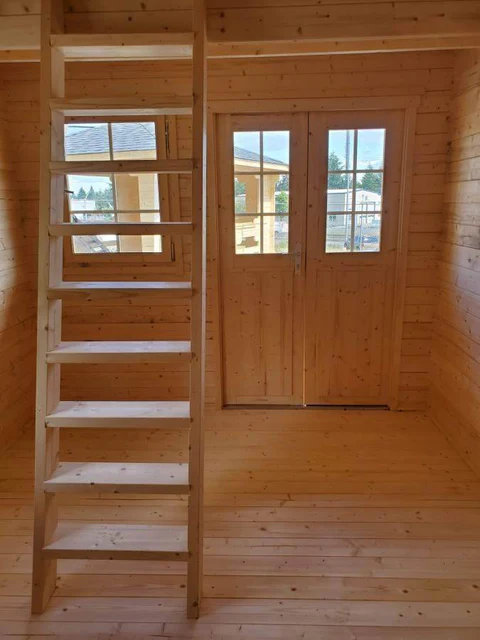

The opening layout combines a wide access opening measuring 1200 × 1955 mm with 2 windows at 765 × 990 mm. The exterior is shaped by a elongated rectangular footprint and a steep cottage-style roof, complemented by high 337 cm ridge, deep 100 cm roof projection.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 290 × 380+100 cm |
|---|---|
| External wall dimensions | 270 × 360+100 cm |
| Wall thickness | 40 mm |
| Side-wall height | 228 cm |
| Ridge height | 337 cm |
| Floor area | 9.7 + 4.7 m² |
| Approximate floor area | 104 sq. ft. |
| Roof area | 20.6 m² |
| Building volume | 27.3 m³ |
| Roof pitch | 38° |
| Roof overhang | 100 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1200 × 1955 mm |
| Door / glazed opening specification 2 | 2 × 765 × 990 mm |
| Impregnated foundation beams | 45 × 70 mm |
| Package dimensions | 480 × 108 × 70 cm |
| Package weight | 1150 kg |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
