Description

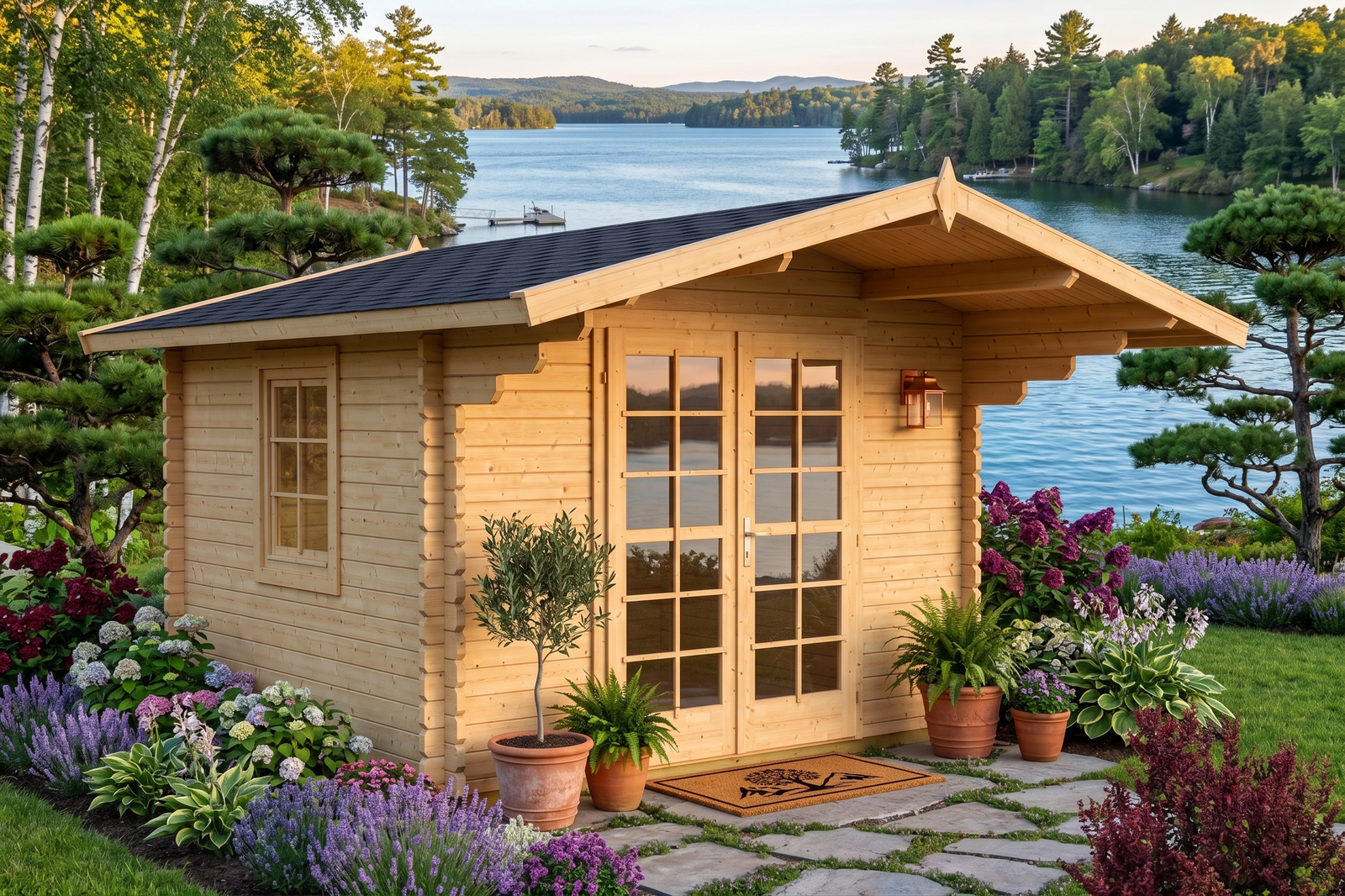

Pine Cottage 40 mm Wooden Bunkie Kit – 9 m²
With a deep 130 cm roof projection that creates a sheltered threshold as its defining characteristic, Pine Cottage 40 mm Wooden Bunkie Kit – 9 m² is a strong candidate for a small retreat, reading room or practical garden workspace on Canadian residential or cottage properties.
The listed 9 m² (97 sq. ft.) main area is arranged within a 300 × 300 cm exterior footprint.
Key advantages of this configuration
- 9 m² (approximately 97 sq. ft.) arranged within external dimensions of 300 × 300 cm
- 40 mm wall boards for a more substantial three-season shell
- Restrained gable roof with 245 cm ridge height, deep 130 cm roof projection
- Opening configuration: 1 wide access opening, 1 listed window
Best suited to
A perimeter-based layout keeps the centre open: place storage and work surfaces against the walls and retain clear movement between the entrance and window.
How the building is arranged
The opening layout combines a wide access opening measuring 1425 × 1955 mm with a window measuring 765 × 990 mm. The exterior is shaped by a balanced square footprint and a restrained gable roof, complemented by 245 cm ridge height, deep 130 cm roof projection.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 320 × 320 cm |
|---|---|
| External wall dimensions | 300 × 300 cm |
| Wall thickness | 40 mm |
| Side-wall height | 205 cm |
| Ridge height | 245 cm |
| Floor area | 9 m² |
| Approximate floor area | 97 sq. ft. |
| Roof area | 18 m² |
| Building volume | 19.2 m³ |
| Roof pitch | 15° |
| Roof overhang | 130 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1425 × 1955 mm |
| Door / glazed opening specification 2 | 765 × 990 mm |
| Package dimensions | 450 × 108 × 56 cm |
| Package weight | 1172 kg |
| Number of packages | 8 |
| Product code | 1a22-0a53-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
