Description
Willowmere 28 mm Wooden Bunkie Kit – 8.1 m²
Rather than relying on a generic square box, Willowmere 28 mm Wooden Bunkie Kit – 8.1 m² uses its balanced square footprint and its balanced square footprint and 8.1 m² layout to create a more purposeful layout for a seasonal guest bunkie, creative studio or poolside change room.

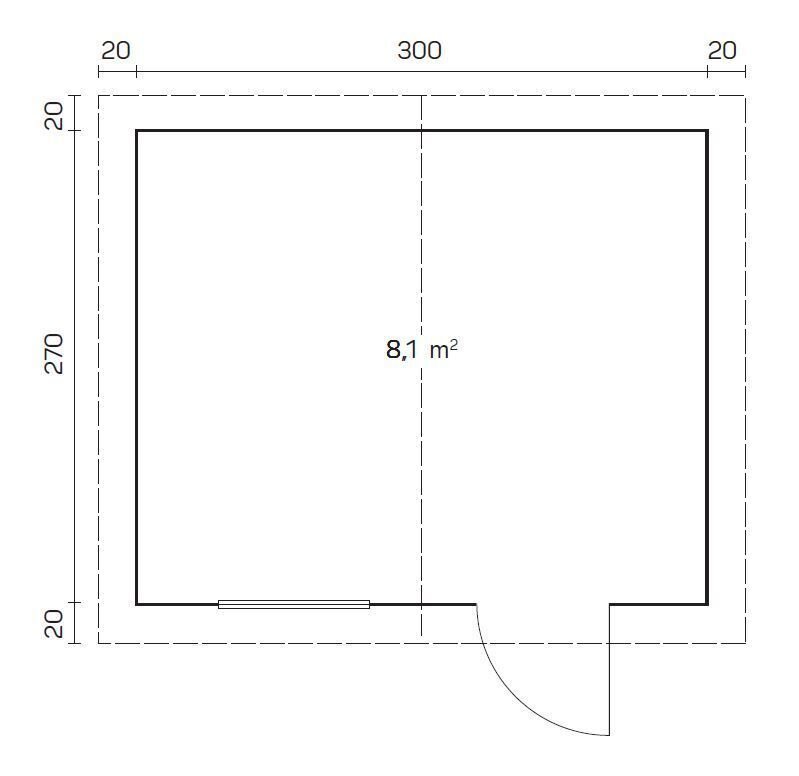

The listed 8.1 m² (87 sq. ft.) main area is arranged within a 300 × 270 cm exterior footprint.
Product-specific highlights
- 8.1 m² (approximately 87 sq. ft.) arranged within external dimensions of 300 × 270 cm
- 28 mm wall boards for a lighter seasonal-use structure
- Restrained gable roof with 234 cm ridge height, compact 20 cm eaves
- Opening configuration: 1 person-width entrance, 1 listed window
Planning the interior
A perimeter-based layout keeps the centre open: place storage and work surfaces against the walls and retain clear movement between the entrance and window.
Exterior proportions and access
The opening layout combines a person-width entrance measuring 840 × 1835 mm with a window measuring 765 × 990 mm. The exterior is shaped by a balanced square footprint and a restrained gable roof, complemented by 234 cm ridge height, compact 20 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 320 × 290 cm |
|---|---|
| External wall dimensions | 300 × 270 cm |
| Wall thickness | 28 mm |
| Side-wall height | 194 cm |
| Ridge height | 234 cm |
| Floor area | 8.1 m² |
| Approximate floor area | 87 sq. ft. |
| Roof area | 11.4 m² |
| Building volume | 16.4 m³ |
| Roof pitch | 15° |
| Roof overhang | 20 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 840 × 1835 mm |
| Door / glazed opening specification 2 | 765 × 990 mm |
| Package dimensions | 360 × 108 × 52.5 cm |
| Package weight | 633 kg |
| Number of packages | 5 |
| Product code | 1a22-0a08-9 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
