Description
Rosewood 40 mm Wooden Gazebo Kit – 8.9 m²
A closer look at Rosewood 40 mm Wooden Gazebo Kit – 8.9 m² shows why it differs from similar kits: a broad access opening that is useful for furniture, tools and equipment, supported by 40 mm wall boards for a more substantial three-season shell.
The listed area is 8.9 m², approximately 96 sq. ft.
Key advantages of this configuration
- 8.9 m² (approximately 96 sq. ft.) of listed floor or covered area
- 40 mm wall boards for a more substantial three-season shell
- Steep cottage-style roof with 325 cm ridge height, compact 30 cm eaves
- Opening configuration: 1 wide access opening, 1 listed window
Where this model fits best
Allow circulation around the seating or dining area and plan the finished floor, drainage and roof covering as part of the site design.
Footprint and architectural character

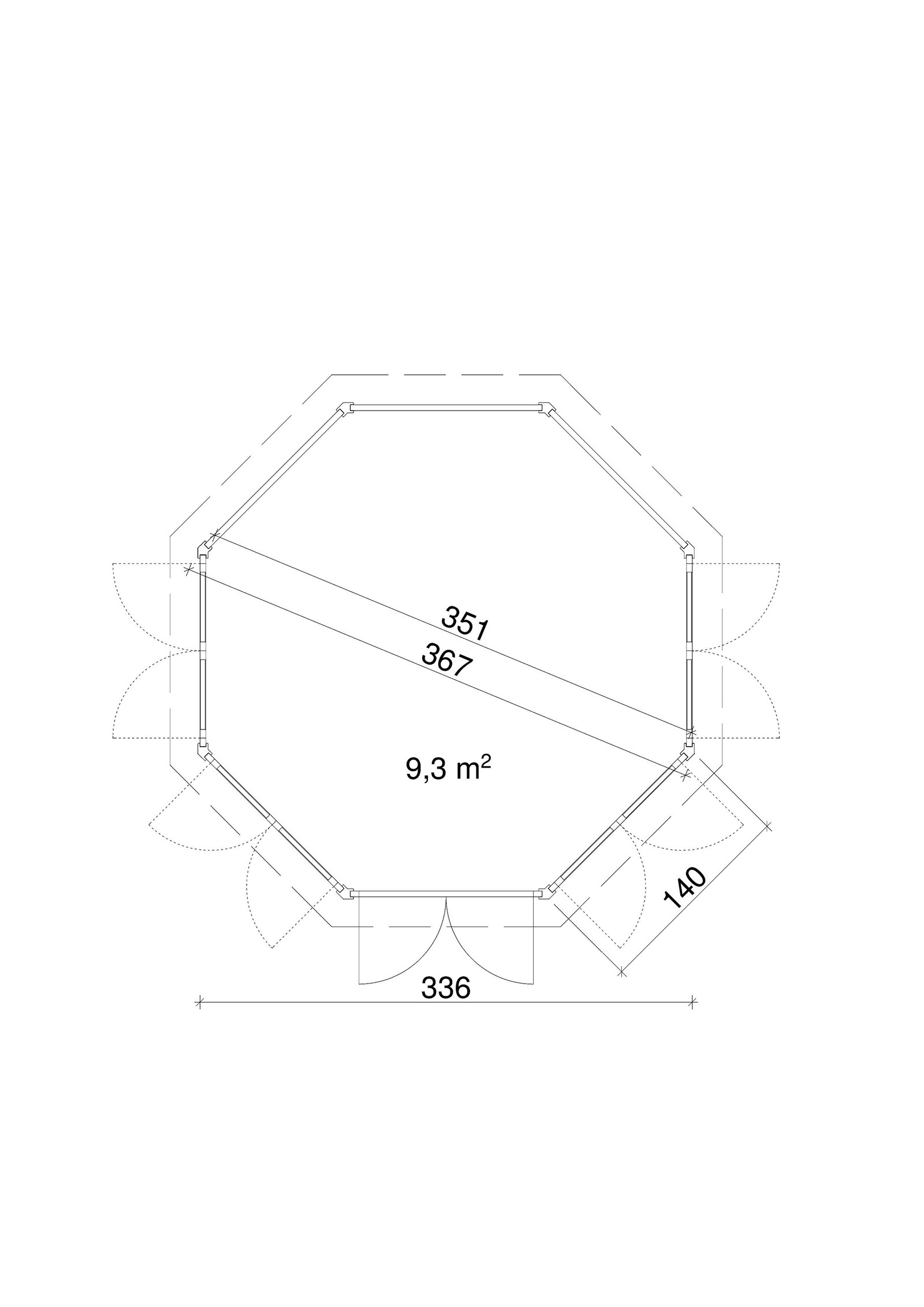

The opening layout combines a wide access opening measuring 1305 × 1880 mm with a window measuring 1305 × 1365 mm. The exterior is shaped by a compact pavilion-style footprint and a steep cottage-style roof, complemented by 325 cm ridge height, compact 30 cm eaves.
What is included
- Precision-cut Nordic spruce structural components
- Model-specific door, window and glazed-opening components listed in the specification table
- Profiled floor and/or roof boards in the listed 18+18 mm configuration
- Foundation components where included in the source specification
- Fasteners and installation instructions
Technical specifications
| Wall-log dimensions | 367 cm |
|---|---|
| External wall dimensions | 351 cm |
| Wall thickness | 40 mm |
| Side-wall height | 218 cm |
| Ridge height | 325 cm |
| Floor area | 8.9 m² |
| Approximate floor area | 96 sq. ft. |
| Roof area | 15.7 m² |
| Building volume | 15.7 m³ |
| Roof pitch | 32° |
| Roof overhang | 30 cm |
| Floor / roof board thickness | 18+18 mm |
| Door / glazed opening specification 1 | 1305 × 1880 mm |
| Door / glazed opening specification 2 | 1305 × 1365 mm |
| Package dimensions | +238 × 76 × 54 cm |
| Package weight | 870 kg |
| Number of packages | 9 |
| Product code | 1a22-4a21-2 |
Important ordering information: Roof covering, transport, site preparation, foundation construction, exterior treatment, insulation, services and installation are not included unless specifically stated in the quotation. Confirm the final kit contents and local requirements before ordering.
